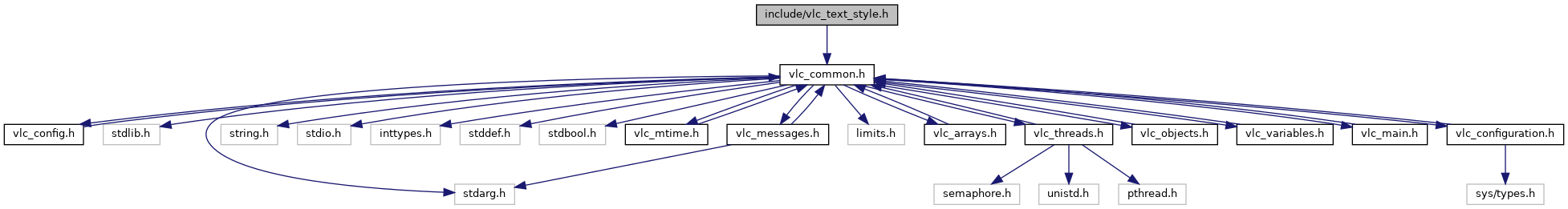

Include dependency graph for vlc_text_style.h:

Data Structures
struct	text_style_t
	Text style. More...

struct	text_segment_t
	Text segment for subtitles. More...

Macros
#define	STYLE_ALPHA_OPAQUE 0xFF

#define	STYLE_ALPHA_TRANSPARENT 0x00

#define	STYLE_NO_DEFAULTS 0x0

#define	STYLE_FULLY_SET 0xFFFF

#define	STYLE_HAS_FONT_COLOR (1 << 0)

#define	STYLE_HAS_FONT_ALPHA (1 << 1)

#define	STYLE_HAS_FLAGS (1 << 2)

#define	STYLE_HAS_OUTLINE_COLOR (1 << 3)

#define	STYLE_HAS_OUTLINE_ALPHA (1 << 4)

#define	STYLE_HAS_SHADOW_COLOR (1 << 5)

#define	STYLE_HAS_SHADOW_ALPHA (1 << 6)

#define	STYLE_HAS_BACKGROUND_COLOR (1 << 7)

#define	STYLE_HAS_BACKGROUND_ALPHA (1 << 8)

#define	STYLE_HAS_K_BACKGROUND_COLOR (1 << 9)

#define	STYLE_HAS_K_BACKGROUND_ALPHA (1 << 10)

#define	STYLE_HAS_WRAP_INFO (1 << 11)

#define	STYLE_BOLD (1 << 0)

#define	STYLE_ITALIC (1 << 1)

#define	STYLE_OUTLINE (1 << 2)

#define	STYLE_SHADOW (1 << 3)

#define	STYLE_BACKGROUND (1 << 4)

#define	STYLE_UNDERLINE (1 << 5)

#define	STYLE_STRIKEOUT (1 << 6)

#define	STYLE_HALFWIDTH (1 << 7)

#define	STYLE_MONOSPACED (1 << 8)

#define	STYLE_DOUBLEWIDTH (1 << 9)

#define	STYLE_BLINK_FOREGROUND (1 << 10)

#define	STYLE_BLINK_BACKGROUND (1 << 11)

#define	STYLE_DEFAULT_FONT_SIZE 20

#define	STYLE_DEFAULT_REL_FONT_SIZE 6.25

Typedefs
typedef struct text_segment_t	text_segment_t

Functions
text_style_t *	text_style_New (void)
	Create a default text style. More...

text_style_t *	text_style_Create (int)
	Create a text style. More...

text_style_t *	text_style_Copy (text_style_t , const text_style_t )
	Copy a text style into another. More...

text_style_t *	text_style_Duplicate (const text_style_t *)
	Duplicate a text style. More...

void	text_style_Merge (text_style_t , const text_style_t , bool b_override)
	Merge two styles using non default values. More...

void	text_style_Delete (text_style_t *)
	Delete a text style created by text_style_New or text_style_Duplicate. More...

text_segment_t *	text_segment_New (const char *)
	This function will create a new text segment. More...

text_segment_t *	text_segment_NewInheritStyle (const text_style_t *p_style)
	This function will create a new text segment and duplicates the style passed as argument. More...

void	text_segment_Delete (text_segment_t *)
	Delete a text segment and its content. More...

void	text_segment_ChainDelete (text_segment_t *)
	This function will destroy a list of text segments allocated by text_segment_New. More...

text_segment_t *	text_segment_Copy (text_segment_t *)
	This function will copy a text_segment and its chain into a new one. More...

unsigned int	vlc_html_color (const char psz_value, bool ok)
	Returns an integer representation of an HTML color. More...

Variables
struct {
const char * psz_name

uint32_t i_value

}	p_html_colors []

Macro Definition Documentation

◆ STYLE_ALPHA_OPAQUE

#define STYLE_ALPHA_OPAQUE 0xFF

◆ STYLE_ALPHA_TRANSPARENT

#define STYLE_ALPHA_TRANSPARENT 0x00

◆ STYLE_BACKGROUND

#define STYLE_BACKGROUND (1 << 4)

◆ STYLE_BLINK_BACKGROUND

#define STYLE_BLINK_BACKGROUND (1 << 11)

◆ STYLE_BLINK_FOREGROUND

#define STYLE_BLINK_FOREGROUND (1 << 10)

◆ STYLE_BOLD

#define STYLE_BOLD (1 << 0)

◆ STYLE_DEFAULT_FONT_SIZE

#define STYLE_DEFAULT_FONT_SIZE 20

◆ STYLE_DEFAULT_REL_FONT_SIZE

#define STYLE_DEFAULT_REL_FONT_SIZE 6.25

◆ STYLE_DOUBLEWIDTH

#define STYLE_DOUBLEWIDTH (1 << 9)

◆ STYLE_FULLY_SET

#define STYLE_FULLY_SET 0xFFFF

◆ STYLE_HALFWIDTH

#define STYLE_HALFWIDTH (1 << 7)

◆ STYLE_HAS_BACKGROUND_ALPHA

#define STYLE_HAS_BACKGROUND_ALPHA (1 << 8)

◆ STYLE_HAS_BACKGROUND_COLOR

#define STYLE_HAS_BACKGROUND_COLOR (1 << 7)

◆ STYLE_HAS_FLAGS

#define STYLE_HAS_FLAGS (1 << 2)

◆ STYLE_HAS_FONT_ALPHA

#define STYLE_HAS_FONT_ALPHA (1 << 1)

◆ STYLE_HAS_FONT_COLOR

#define STYLE_HAS_FONT_COLOR (1 << 0)

◆ STYLE_HAS_K_BACKGROUND_ALPHA

#define STYLE_HAS_K_BACKGROUND_ALPHA (1 << 10)

◆ STYLE_HAS_K_BACKGROUND_COLOR

#define STYLE_HAS_K_BACKGROUND_COLOR (1 << 9)

◆ STYLE_HAS_OUTLINE_ALPHA

#define STYLE_HAS_OUTLINE_ALPHA (1 << 4)

◆ STYLE_HAS_OUTLINE_COLOR

#define STYLE_HAS_OUTLINE_COLOR (1 << 3)

◆ STYLE_HAS_SHADOW_ALPHA

#define STYLE_HAS_SHADOW_ALPHA (1 << 6)

◆ STYLE_HAS_SHADOW_COLOR

#define STYLE_HAS_SHADOW_COLOR (1 << 5)

◆ STYLE_HAS_WRAP_INFO

#define STYLE_HAS_WRAP_INFO (1 << 11)

◆ STYLE_ITALIC

#define STYLE_ITALIC (1 << 1)

◆ STYLE_MONOSPACED

#define STYLE_MONOSPACED (1 << 8)

◆ STYLE_NO_DEFAULTS

#define STYLE_NO_DEFAULTS 0x0

◆ STYLE_OUTLINE

#define STYLE_OUTLINE (1 << 2)

◆ STYLE_SHADOW

#define STYLE_SHADOW (1 << 3)

◆ STYLE_STRIKEOUT

#define STYLE_STRIKEOUT (1 << 6)

◆ STYLE_UNDERLINE

#define STYLE_UNDERLINE (1 << 5)

Typedef Documentation

◆ text_segment_t

typedef struct text_segment_t text_segment_t

Function Documentation

◆ text_segment_ChainDelete()

void text_segment_ChainDelete ( text_segment_t * )

This function will destroy a list of text segments allocated by text_segment_New.

You may pass it NULL.

References text_segment_t::p_next, and text_segment_Delete().

Referenced by subpicture_region_Delete().

◆ text_segment_Copy()

text_segment_t* text_segment_Copy ( text_segment_t * )

This function will copy a text_segment and its chain into a new one.

You may give it NULL, but it will return NULL.

References text_segment_t::p_next, text_segment_t::psz_text, text_segment_t::style, text_segment_New(), text_style_Duplicate(), and unlikely.

Referenced by subpicture_region_Copy().

◆ text_segment_Delete()

void text_segment_Delete ( text_segment_t * )

Delete a text segment and its content.

This assumes the segment is not part of a chain

References text_segment_t::psz_text, text_segment_t::style, and text_style_Delete().

Referenced by text_segment_ChainDelete(), text_segment_NewInheritStyle(), and vout_OSDSegment().

◆ text_segment_New()

text_segment_t* text_segment_New ( const char * )

This function will create a new text segment.

You should use text_segment_ChainDelete to destroy it, to clean all the linked segments, or text_segment_Delete to free a specic one

This duplicates the string passed as argument

References text_segment_t::psz_text, and strdup().

Referenced by text_segment_Copy(), text_segment_NewInheritStyle(), and vout_OSDSegment().

◆ text_segment_NewInheritStyle()

text_segment_t* text_segment_NewInheritStyle ( const text_style_t * p_style )

This function will create a new text segment and duplicates the style passed as argument.

You should use text_segment_ChainDelete to destroy it, to clean all the linked segments, or text_segment_Delete to free a specic one

This doesn't initialize the text.

References text_segment_t::style, text_segment_Delete(), text_segment_New(), text_style_Duplicate(), and unlikely.

◆ text_style_Copy()

text_style_t* text_style_Copy	(	text_style_t *	,
		const text_style_t *
	)

Copy a text style into another.

References text_style_t::psz_fontname, text_style_t::psz_monofontname, and strdup().

Referenced by text_style_Duplicate().

◆ text_style_Create()

text_style_t* text_style_Create ( int )

Create a text style.

Set feature flags as argument if you want to set style defaults

References text_style_t::e_wrapinfo, text_style_t::f_font_relsize, text_style_t::i_background_alpha, text_style_t::i_background_color, text_style_t::i_features, text_style_t::i_font_alpha, text_style_t::i_font_color, text_style_t::i_font_size, text_style_t::i_karaoke_background_alpha, text_style_t::i_karaoke_background_color, text_style_t::i_outline_alpha, text_style_t::i_outline_color, text_style_t::i_outline_width, text_style_t::i_shadow_alpha, text_style_t::i_shadow_color, text_style_t::i_shadow_width, text_style_t::i_spacing, text_style_t::i_style_flags, text_style_t::psz_fontname, text_style_t::psz_monofontname, STYLE_ALPHA_OPAQUE, STYLE_DEFAULT_FONT_SIZE, STYLE_DEFAULT_REL_FONT_SIZE, STYLE_FULLY_SET, STYLE_NO_DEFAULTS, and STYLE_OUTLINE.

Referenced by text_style_New(), and vout_OSDSegment().

◆ text_style_Delete()

void text_style_Delete ( text_style_t * )

Delete a text style created by text_style_New or text_style_Duplicate.

References text_style_t::psz_fontname, and text_style_t::psz_monofontname.

Referenced by text_segment_Delete().

◆ text_style_Duplicate()

text_style_t* text_style_Duplicate ( const text_style_t * )

Duplicate a text style.

References text_style_Copy().

Referenced by text_segment_Copy(), and text_segment_NewInheritStyle().

◆ text_style_Merge()

void text_style_Merge	(	text_style_t *	,
		const text_style_t *	,
		bool	b_override
	)

Merge two styles using non default values.

Set b_override to true if you also want to overwrite non-defaults

References text_style_t::i_features, text_style_t::i_style_flags, MERGE, MERGE_SIZE, text_style_t::psz_fontname, text_style_t::psz_monofontname, strdup(), STYLE_HAS_BACKGROUND_ALPHA, STYLE_HAS_BACKGROUND_COLOR, STYLE_HAS_FONT_ALPHA, STYLE_HAS_FONT_COLOR, STYLE_HAS_K_BACKGROUND_ALPHA, STYLE_HAS_K_BACKGROUND_COLOR, STYLE_HAS_OUTLINE_ALPHA, STYLE_HAS_OUTLINE_COLOR, STYLE_HAS_SHADOW_ALPHA, STYLE_HAS_SHADOW_COLOR, STYLE_HAS_WRAP_INFO, and STYLE_NO_DEFAULTS.

◆ text_style_New()

text_style_t* text_style_New ( void )

Create a default text style.

References STYLE_FULLY_SET, and text_style_Create().

◆ vlc_html_color()

unsigned int vlc_html_color	(	const char *	psz_value,
		bool *	ok
	)

Returns an integer representation of an HTML color.

Parameters

psz_value	An HTML color, which can be either: A standard HTML color (red, cyan, ...) as defined in p_html_colors An hexadecimal color, of the form [#][AA]RRGGBB
ok	If non-null, true will be stored in this pointer to signal a successful conversion

References i_value, p_html_colors, psz_name, psz_value, and strcasecmp().

Variable Documentation

◆ i_value

uint32_t i_value

Referenced by config_CategoryHelpGet(), config_CategoryNameGet(), config_PutInt(), and vlc_html_color().

◆ p_html_colors

const { ... } p_html_colors[]

Referenced by vlc_html_color().

◆ psz_name

const char* psz_name
