vlc_interface.h File Reference

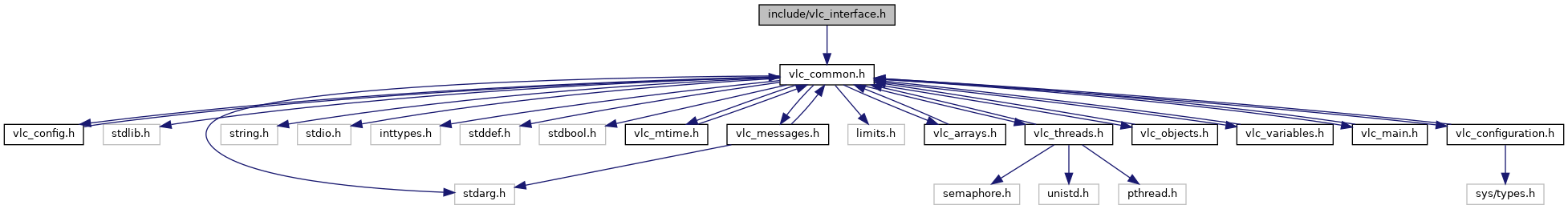

Include dependency graph for vlc_interface.h:

Go to the source code of this file.

Data Structures
struct	intf_thread_t
	Describe all interface-specific data of the interface thread. More...
struct	intf_dialog_args_t
	Arguments passed to a dialogs provider This describes the arguments passed to the dialogs provider. More...
struct	interaction_dialog_t
	This structure describes a piece of interaction with the user. More...

Macros
#define	pl_CurrentInput(intf)   (playlist_CurrentInput(pl_Get(intf)))
	Retrieves the current input thread from the playlist. More...

Typedefs
typedef struct intf_dialog_args_t	intf_dialog_args_t
typedef struct intf_sys_t	intf_sys_t
typedef struct intf_thread_t	intf_thread_t
	Describe all interface-specific data of the interface thread. More...

Functions
int	intf_Create (playlist_t *, const char *)
	Create and start an interface. More...
void	libvlc_Quit (libvlc_int_t *)
	Posts an exit signal to LibVLC instance. More...
static playlist_t *	pl_Get (struct intf_thread_t *intf)
#define	INTF_ABOUT_MSG   LICENSE_MSG
#define	EXTENSIONS_AUDIO_CSV
#define	EXTENSIONS_VIDEO_CSV
#define	EXTENSIONS_AUDIO
#define	EXTENSIONS_VIDEO
#define	EXTENSIONS_PLAYLIST   "*.asx;*.b4s;*.cue;*.ifo;*.m3u;*.m3u8;*.pls;*.ram;*.rar;*.sdp;*.vlc;*.xspf;*.wax;*.wvx;*.zip;*.conf"
#define	EXTENSIONS_MEDIA
#define	EXTENSIONS_SUBTITLE
#define	DIALOG_GOT_ANSWER   0x01
	Possible flags . More...
#define	DIALOG_YES_NO_CANCEL   0x02
#define	DIALOG_LOGIN_PW_OK_CANCEL   0x04
#define	DIALOG_PSZ_INPUT_OK_CANCEL   0x08
#define	DIALOG_BLOCKING_ERROR   0x10
#define	DIALOG_NONBLOCKING_ERROR   0x20
#define	DIALOG_USER_PROGRESS   0x80
#define	DIALOG_INTF_PROGRESS   0x100
#define	intf_UserStringInput(a, b, c, d)   (VLC_OBJECT(a),b,c,d, VLC_EGENERIC)
#define	interaction_Register(t)   (t, VLC_EGENERIC)
#define	interaction_Unregister(t)   (t, VLC_EGENERIC)
enum	vlc_intf_dialog {   INTF_DIALOG_FILE_SIMPLE = 1, INTF_DIALOG_FILE, INTF_DIALOG_DISC, INTF_DIALOG_NET,   INTF_DIALOG_CAPTURE, INTF_DIALOG_SAT, INTF_DIALOG_DIRECTORY, INTF_DIALOG_STREAMWIZARD,   INTF_DIALOG_WIZARD, INTF_DIALOG_PLAYLIST, INTF_DIALOG_MESSAGES, INTF_DIALOG_FILEINFO,   INTF_DIALOG_PREFS, INTF_DIALOG_BOOKMARKS, INTF_DIALOG_EXTENDED, INTF_DIALOG_RENDERER,   INTF_DIALOG_POPUPMENU = 20, INTF_DIALOG_AUDIOPOPUPMENU, INTF_DIALOG_VIDEOPOPUPMENU, INTF_DIALOG_MISCPOPUPMENU,   INTF_DIALOG_FILE_GENERIC = 30, INTF_DIALOG_INTERACTION = 50, INTF_DIALOG_SENDKEY = 51, INTF_DIALOG_UPDATEVLC = 90,   INTF_DIALOG_VLM, INTF_DIALOG_EXIT = 99 }
enum	{ DIALOG_OK_YES, DIALOG_NO, DIALOG_CANCELLED }
	Possible return codes. More...
enum	{ ANSWERED_DIALOG, DESTROYED_DIALOG }
	Possible status More...
enum	{ INTERACT_NEW, INTERACT_UPDATE, INTERACT_HIDE, INTERACT_DESTROY }
	Possible actions. More...
typedef enum vlc_intf_dialog	vlc_intf_dialog
typedef struct interaction_dialog_t	interaction_dialog_t
	This structure describes a piece of interaction with the user. More...
void	vlc_LogSet (libvlc_int_t *, vlc_log_cb cb, void *data)
	Sets the message logging callback. More...

Detailed Description

VLC user interface modules

Typedef Documentation

intf_dialog_args_t

typedef struct intf_dialog_args_t intf_dialog_args_t
