Widget descriptor for extensions. More...

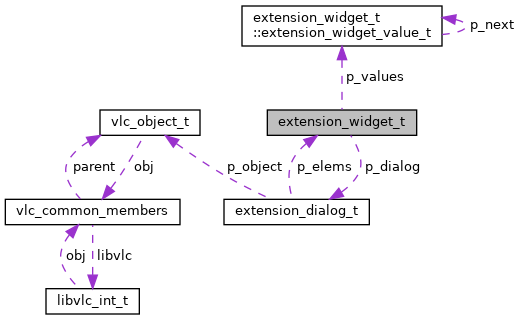

Collaboration diagram for extension_widget_t:
Data Structures | |
| struct | extension_widget_value_t |
Data Fields | |
| extension_widget_type_e | type |
| Type of the widget. More... | |
| char * | psz_text |
| Text. May be NULL or modified by the UI. More... | |
| struct extension_widget_t::extension_widget_value_t * | p_values |
| Chained list of values (Drop-down/List) More... | |
| bool | b_checked |
| Is this entry checked. More... | |
| int | i_row |
| Row in the grid. More... | |
| int | i_column |
| Column in the grid. More... | |
| int | i_horiz_span |
| Horizontal size of the object. More... | |
| int | i_vert_span |
| Vertical size of the object. More... | |
| int | i_width |
| Width hint. More... | |
| int | i_height |
| Height hint. More... | |
| bool | b_hide |
| Hide this widget (make it invisible) More... | |
| int | i_spin_loops |
| Number of loops to play (-1 = infinite, 0 = stop animation) More... | |
| bool | b_kill |
| Destroy this widget. More... | |
| bool | b_update |
| Update this widget. More... | |
| void * | p_sys |
| Reserved for the extension manager. More... | |
| void * | p_sys_intf |
| Reserved for the UI, but: NULL means the UI has destroyed the widget or has not created it yet. More... | |
| extension_dialog_t * | p_dialog |
| Parent dialog. More... | |
Detailed Description
Widget descriptor for extensions.
Field Documentation
◆ b_checked
| bool extension_widget_t::b_checked |
Is this entry checked.
◆ b_hide
| bool extension_widget_t::b_hide |
Hide this widget (make it invisible)
◆ b_kill
| bool extension_widget_t::b_kill |
Destroy this widget.
◆ b_update
| bool extension_widget_t::b_update |
Update this widget.
◆ i_column
| int extension_widget_t::i_column |
Column in the grid.
◆ i_height
| int extension_widget_t::i_height |
Height hint.
◆ i_horiz_span
| int extension_widget_t::i_horiz_span |
Horizontal size of the object.
◆ i_row
| int extension_widget_t::i_row |
Row in the grid.
◆ i_spin_loops
| int extension_widget_t::i_spin_loops |
Number of loops to play (-1 = infinite, 0 = stop animation)
◆ i_vert_span
| int extension_widget_t::i_vert_span |
Vertical size of the object.
◆ i_width
| int extension_widget_t::i_width |
Width hint.
◆ p_dialog
| extension_dialog_t* extension_widget_t::p_dialog |
Parent dialog.
◆ p_sys
| void* extension_widget_t::p_sys |
Reserved for the extension manager.
◆ p_sys_intf
| void* extension_widget_t::p_sys_intf |
Reserved for the UI, but: NULL means the UI has destroyed the widget or has not created it yet.
◆ p_values
| struct extension_widget_t::extension_widget_value_t * extension_widget_t::p_values |
Chained list of values (Drop-down/List)
◆ psz_text
| char* extension_widget_t::psz_text |
Text. May be NULL or modified by the UI.
◆ type
| extension_widget_type_e extension_widget_t::type |
Type of the widget.
The documentation for this struct was generated from the following file:
- include/vlc_extensions.h
