audio_output Struct Reference

Audio output object. More...

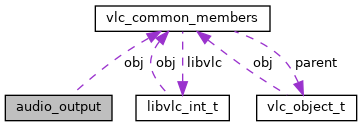

Collaboration diagram for audio_output:

Data Fields
struct vlc_common_members	obj
struct aout_sys_t *	sys
	Private data for callbacks. More...
int(*	start )(audio_output_t *, audio_sample_format_t *fmt)
	Starts a new stream (mandatory, cannot be NULL). More...
void(*	stop )(audio_output_t *)
	Stops the existing stream (optional, may be NULL). More...
int(*	time_get )(audio_output_t *, mtime_t *delay)
	Estimates playback buffer latency (optional, may be NULL). More...
void(*	play )(audio_output_t *, block_t *)
	Queues a block of samples for playback (mandatory, cannot be NULL). More...
void(*	pause )(audio_output_t *, bool pause, mtime_t date)
	Pauses or resumes playback (optional, may be NULL). More...
void(*	flush )(audio_output_t *, bool wait)
	Flushes or drains the playback buffers (mandatory, cannot be NULL). More...
int(*	volume_set )(audio_output_t *, float volume)
	Changes playback volume (optional, may be NULL). More...
int(*	mute_set )(audio_output_t *, bool mute)
	Changes muting (optinal, may be NULL). More...
int(*	device_select )(audio_output_t *, const char *id)
	Selects an audio output device (optional, may be NULL). More...
struct {
bool   headphones
	Default to false, set it to true if the current sink is using headphones. More...
}	current_sink_info
	Current sink informations set by the module from the start() function. More...
struct {
void(*   volume_report )(audio_output_t *, float)
void(*   mute_report )(audio_output_t *, bool)
void(*   policy_report )(audio_output_t *, bool)
void(*   device_report )(audio_output_t *, const char *)
void(*   hotplug_report )(audio_output_t *, const char       *, const char *)
int(*   gain_request )(audio_output_t *, float)
void(*   restart_request )(audio_output_t *, unsigned)
}	event

Detailed Description

Audio output object.

Field Documentation

current_sink_info

struct { ... } audio_output::current_sink_info

Current sink informations set by the module from the start() function.

Referenced by aout_OutputNew(), and aout_PrepareStereoMode().

device_report

void(* audio_output::device_report) (audio_output_t *, const char *)

Referenced by aout_DeviceReport(), and aout_New().

device_select

int(* audio_output::device_select) (audio_output_t *, const char *id)

Selects an audio output device (optional, may be NULL).

Parameters

id	nul-terminated device unique identifier.

Returns

0 on success, non-zero on failure.

Warning

A stream may or may not have been started when called.

Referenced by aout_Destroy(), aout_New(), and aout_OutputDeviceSet().

event

struct { ... } audio_output::event

Referenced by aout_DeviceReport(), aout_HotplugReport(), aout_MuteReport(), aout_New(), aout_PolicyReport(), and aout_VolumeReport().

flush

void(* audio_output::flush) (audio_output_t *, bool wait)

Flushes or drains the playback buffers (mandatory, cannot be NULL).

Parameters

wait	true to wait for playback of pending buffers (drain), false to discard pending buffers (flush)

Note

A stream must have been started when called.

Referenced by aout_OutputFlush().

gain_request

int(* audio_output::gain_request) (audio_output_t *, float)

Referenced by aout_New().

headphones

bool audio_output::headphones

Default to false, set it to true if the current sink is using headphones.

Referenced by aout_OutputNew(), and aout_PrepareStereoMode().

hotplug_report

void(* audio_output::hotplug_report) (audio_output_t *, const char *, const char *)

Referenced by aout_HotplugReport(), and aout_New().

mute_report

void(* audio_output::mute_report) (audio_output_t *, bool)

Referenced by aout_MuteReport(), and aout_New().

mute_set

int(* audio_output::mute_set) (audio_output_t *, bool mute)

Changes muting (optinal, may be NULL).

Parameters

mute	true to mute, false to unmute

Warning

A stream may or may not have been started when called.

Referenced by aout_Destroy(), aout_New(), and aout_OutputMuteSet().

obj

struct vlc_common_members audio_output::obj

Referenced by aout_Destroy(), and aout_PolicyNotify().

pause

void(* audio_output::pause) (audio_output_t *, bool pause, mtime_t date)

Pauses or resumes playback (optional, may be NULL).

Parameters

pause	pause if true, resume from pause if false
date	timestamp when the pause or resume was requested

Note

A stream must have been started when called.

Referenced by aout_OutputPause().

play

void(* audio_output::play) (audio_output_t *, block_t *)

Queues a block of samples for playback (mandatory, cannot be NULL).

Note

A stream must have been started when called.

Referenced by aout_OutputPlay().

policy_report

void(* audio_output::policy_report) (audio_output_t *, bool)

Referenced by aout_New(), and aout_PolicyReport().

restart_request

void(* audio_output::restart_request) (audio_output_t *, unsigned)

Referenced by aout_New().

start

int(* audio_output::start) (audio_output_t *, audio_sample_format_t *fmt)

Starts a new stream (mandatory, cannot be NULL).

Parameters

fmt	input stream sample format upon entry, output stream sample format upon return [IN/OUT]

Returns

VLC_SUCCESS on success, non-zero on failure

Note

No other stream may be already started when called.

Referenced by aout_New(), and aout_OutputNew().

stop

void(* audio_output::stop) (audio_output_t *)

Stops the existing stream (optional, may be NULL).

Note

A stream must have been started when called.

Referenced by aout_New(), and aout_OutputDelete().

sys

struct aout_sys_t* audio_output::sys

Private data for callbacks.

time_get

int(* audio_output::time_get) (audio_output_t *, mtime_t *delay)

Estimates playback buffer latency (optional, may be NULL).

Parameters

delay

pointer to the delay until the next sample to be written to the playback buffer is rendered [OUT]

Returns

0 on success, non-zero on failure or lack of data

Note

A stream must have been started when called.

Referenced by aout_OutputTimeGet().

volume_report

void(* audio_output::volume_report) (audio_output_t *, float)

Referenced by aout_New(), and aout_VolumeReport().

volume_set

int(* audio_output::volume_set) (audio_output_t *, float volume)

Changes playback volume (optional, may be NULL).

Parameters

volume

requested volume (0. = mute, 1. = nominal)

Note

The volume is always a positive number.

Warning

A stream may or may not have been started when called.

Referenced by aout_Destroy(), aout_New(), and aout_OutputVolumeSet().

---

The documentation for this struct was generated from the following file:

• include/vlc_aout.h
