Video output

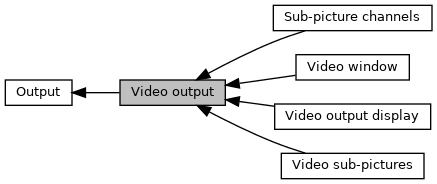

Collaboration diagram for Video output:

Modules
	Sub-picture channels
	Video sub-pictures
	Video output display
	Video output display: output buffers and rendering.
	Video window

Files
file	vlc_vout.h

Data Structures
struct	vout_configuration_t
	Vout configuration. More...
struct	vout_thread_t
	Video output thread descriptor. More...

Macros
#define	VOUT_ALIGN_LEFT   0x0001
#define	VOUT_ALIGN_RIGHT   0x0002
#define	VOUT_ALIGN_HMASK   0x0003
#define	VOUT_ALIGN_TOP   0x0004
#define	VOUT_ALIGN_BOTTOM   0x0008
#define	VOUT_ALIGN_VMASK   0x000C
#define	vout_Request(a, b)   vout_Request(VLC_OBJECT(a),b)
#define	VOUT_SPU_CHANNEL_INVALID   (-1) /* Always fails in comparison */
#define	VOUT_SPU_CHANNEL_OSD   1 /* OSD channel is automatically cleared */
#define	VOUT_SPU_CHANNEL_AVAIL_FIRST   8 /* Registerable channels from this offset */

Typedefs
typedef struct vout_thread_sys_t	vout_thread_sys_t
	Video output thread private structure. More...

Functions
vout_thread_t *	vout_Request (vlc_object_t *object, const vout_configuration_t *cfg)
	Returns a suitable vout or release the given one. More...
void	vout_Close (vout_thread_t *p_vout)
	This function will close a vout created by vout_Request. More...
static void	vout_CloseAndRelease (vout_thread_t *p_vout)
	This function will close a vout created by vout_Create and then release it. More...
int	vout_GetSnapshot (vout_thread_t *p_vout, block_t **pp_image, picture_t **pp_picture, video_format_t *p_fmt, const char *psz_format, mtime_t i_timeout)
	This function will handle a snapshot request. More...
void	vout_ChangeAspectRatio (vout_thread_t *p_vout, unsigned int i_num, unsigned int i_den)
picture_t *	vout_GetPicture (vout_thread_t *)
	Allocates a video output picture buffer. More...
void	vout_PutPicture (vout_thread_t *, picture_t *)
	It gives to the vout a picture to be displayed. More...
void	vout_PutSubpicture (vout_thread_t *, subpicture_t *)
int	vout_RegisterSubpictureChannel (vout_thread_t *)
void	vout_FlushSubpictureChannel (vout_thread_t *, int)

Detailed Description

Video rendering, output and window management

This module describes the programming interface for video output threads. It includes functions allowing to open a new thread, send pictures to a thread, and destroy a previously opened video output thread.

Macro Definition Documentation

VOUT_ALIGN_BOTTOM

#define VOUT_ALIGN_BOTTOM   0x0008

VOUT_ALIGN_HMASK

#define VOUT_ALIGN_HMASK   0x0003

VOUT_ALIGN_LEFT

#define VOUT_ALIGN_LEFT   0x0001

VOUT_ALIGN_RIGHT

#define VOUT_ALIGN_RIGHT   0x0002

VOUT_ALIGN_TOP

#define VOUT_ALIGN_TOP   0x0004

VOUT_ALIGN_VMASK

#define VOUT_ALIGN_VMASK   0x000C

vout_Request

#define vout_Request	(		a,
			b
	)		vout_Request(VLC_OBJECT(a),b)

VOUT_SPU_CHANNEL_AVAIL_FIRST

#define VOUT_SPU_CHANNEL_AVAIL_FIRST   8 /* Registerable channels from this offset */

VOUT_SPU_CHANNEL_INVALID

#define VOUT_SPU_CHANNEL_INVALID   (-1) /* Always fails in comparison */

VOUT_SPU_CHANNEL_OSD

#define VOUT_SPU_CHANNEL_OSD   1 /* OSD channel is automatically cleared */

Typedef Documentation

vout_thread_sys_t

typedef struct vout_thread_sys_t vout_thread_sys_t

Video output thread private structure.

Function Documentation

vout_ChangeAspectRatio()

void vout_ChangeAspectRatio	(	vout_thread_t *	p_vout,
		unsigned int	i_num,
		unsigned int	i_den
	)

vout_Close()

void vout_Close

(

vout_thread_t *

p_vout

)

This function will close a vout created by vout_Request.

The associated vout module is closed. Note: It is not released yet, you'll have to call vlc_object_release() or use the convenient vout_CloseAndRelease().

Parameters

p_vout

the vout to close

Referenced by vout_CloseAndRelease().

vout_CloseAndRelease()

static void vout_CloseAndRelease ( vout_thread_t *  p_vout )

inlinestatic

This function will close a vout created by vout_Create and then release it.

Parameters

p_vout

the vout to close and release

References vlc_object_release, and vout_Close().

Referenced by DestroyVout().

vout_FlushSubpictureChannel()

void vout_FlushSubpictureChannel	(	vout_thread_t *	,
		int
	)

Referenced by ControlNavDisplayPosition(), and DeleteDecoder().

vout_GetPicture()

picture_t* vout_GetPicture

(

vout_thread_t *

vout

)

Allocates a video output picture buffer.

Either vout_PutPicture() or picture_Release() must be used to return the buffer to the video output free buffer pool.

You may use picture_Hold() (paired with picture_Release()) to keep a read-only reference.

References vout_thread_sys_t::decoder_pool, picture_t::format, likely, vout_thread_sys_t::original, vout_thread_t::p, picture_pool_Wait(), picture_Reset(), and VideoFormatCopyCropAr().

Referenced by vout_new_buffer().

vout_GetSnapshot()

int vout_GetSnapshot	(	vout_thread_t *	p_vout,
		block_t **	pp_image,
		picture_t **	pp_picture,
		video_format_t *	p_fmt,
		const char *	psz_format,
		mtime_t	i_timeout
	)

This function will handle a snapshot request.

pp_image, pp_picture and p_fmt can be NULL otherwise they will be set with returned value in case of success.

pp_image will hold an encoded picture in psz_format format.

p_fmt can be NULL otherwise it will be set with the format used for the picture before encoding.

i_timeout specifies the time the function will wait for a snapshot to be available.

< Unspecified error

< Unspecified error

< No error

vout_PutPicture()

void vout_PutPicture	(	vout_thread_t *	vout,
		picture_t *	picture
	)

It gives to the vout a picture to be displayed.

The given picture MUST comes from vout_GetPicture.

Becareful, after vout_PutPicture is called, picture_t::p_next cannot be read/used.

References vout_thread_sys_t::control, vout_thread_sys_t::decoder_fifo, vout_thread_sys_t::decoder_pool, vout_thread_t::p, picture_t::p_next, picture_fifo_Push(), picture_pool_OwnsPic(), picture_Release(), and vout_control_Wake().

vout_PutSubpicture()

void vout_PutSubpicture	(	vout_thread_t *	,
		subpicture_t *
	)

Referenced by vout_OSDEpg(), vout_OSDText(), and VoutSnapshotPip().

vout_RegisterSubpictureChannel()

int vout_RegisterSubpictureChannel

(

vout_thread_t *

)

Referenced by spu_new_buffer().

vout_Request()

vout_thread_t* vout_Request	(	vlc_object_t *	object,
		const vout_configuration_t *	cfg
	)

Returns a suitable vout or release the given one.

If cfg->fmt is non NULL and valid, a vout will be returned, reusing cfg->vout is possible, otherwise it returns NULL. If cfg->vout is not used, it will be closed and released.

You can release the returned value either by vout_Request or vout_Close() followed by a vlc_object_release() or shorter vout_CloseAndRelease()

Parameters

object	a vlc object
cfg	the video configuration requested.

Returns

a vout
