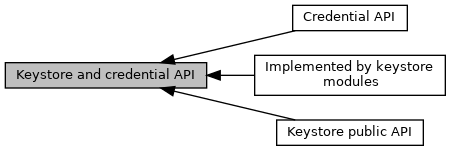

Collaboration diagram for Keystore and credential API:

Modules
	Keystore public API

	Credential API

	Implemented by keystore modules

Files
file	vlc_keystore.h

Enumerations
enum	{ vlc_credential::GET_FROM_URL, vlc_credential::GET_FROM_OPTION, vlc_credential::GET_FROM_MEMORY_KEYSTORE, vlc_credential::GET_FROM_KEYSTORE, vlc_credential::GET_FROM_DIALOG }

Variables
char *	vlc_keystore_entry::ppsz_values [KEY_MAX]
	Set of key/values. More...

uint8_t *	vlc_keystore_entry::p_secret
	Secret password. More...

size_t	vlc_keystore_entry::i_secret_len
	Length of the secret. More...

const vlc_url_t *	vlc_credential::p_url
	url to store or to search More...

const char *	vlc_credential::psz_realm
	http realm or smb domain to search, can be overridden after a call to vlc_credential_get() More...

const char *	vlc_credential::psz_authtype
	http authtype to search, can be overridden after a call to vlc_credential_get() More...

const char *	vlc_credential::psz_username
	valid only if vlc_credential_get() returned true More...

const char *	vlc_credential::psz_password
	valid only if vlc_credential_get() returned true More...

enum vlc_credential:: { ... }	vlc_credential::i_get_order

vlc_keystore *	vlc_credential::p_keystore

vlc_keystore_entry *	vlc_credential::p_entries

unsigned int	vlc_credential::i_entries_count

char *	vlc_credential::psz_split_domain

char *	vlc_credential::psz_var_username

char *	vlc_credential::psz_var_password

char *	vlc_credential::psz_dialog_username

char *	vlc_credential::psz_dialog_password

bool	vlc_credential::b_from_keystore

bool	vlc_credential::b_store

struct vlc_common_members	vlc_keystore::obj

module_t *	vlc_keystore::p_module

vlc_keystore_sys *	vlc_keystore::p_sys

int(*	vlc_keystore::pf_store )(vlc_keystore p_keystore, const char const ppsz_values[KEY_MAX], const uint8_t p_secret, size_t i_secret_len, const char psz_label)
	See vlc_keystore_store() More...

unsigned int(*	vlc_keystore::pf_find )(vlc_keystore p_keystore, const char const ppsz_values[KEY_MAX], vlc_keystore_entry **pp_entries)
	See vlc_keystore_find() More...

unsigned int(*	vlc_keystore::pf_remove )(vlc_keystore p_keystore, const char const ppsz_values[KEY_MAX])
	See vlc_keystore_remove() More...

Detailed Description

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

Enumerator
GET_FROM_URL
GET_FROM_OPTION
GET_FROM_MEMORY_KEYSTORE
GET_FROM_KEYSTORE
GET_FROM_DIALOG

Variable Documentation

◆ b_from_keystore

bool vlc_credential::b_from_keystore

Referenced by credential_find_keystore(), vlc_credential_get(), and vlc_credential_store().

◆ b_store

bool vlc_credential::b_store

Referenced by vlc_credential_get(), and vlc_credential_store().

◆ i_entries_count

unsigned int vlc_credential::i_entries_count

Referenced by credential_find_keystore(), and vlc_credential_clean().

◆ i_get_order

enum { ... } vlc_credential::i_get_order

Referenced by vlc_credential_get(), and vlc_credential_init().

◆ i_secret_len

size_t vlc_keystore_entry::i_secret_len

Length of the secret.

Referenced by credential_find_keystore(), and vlc_keystore_entry_set_secret().

◆ obj

struct vlc_common_members vlc_keystore::obj

◆ p_entries

vlc_keystore_entry* vlc_credential::p_entries

Referenced by credential_find_keystore(), and vlc_credential_clean().

◆ p_keystore

vlc_keystore* vlc_credential::p_keystore

Referenced by vlc_credential_clean(), vlc_credential_get(), and vlc_credential_store().

◆ p_module

module_t* vlc_keystore::p_module

Referenced by keystore_create(), and vlc_keystore_release().

◆ p_secret

uint8_t* vlc_keystore_entry::p_secret

Secret password.

Referenced by credential_find_keystore(), vlc_keystore_entry_set_secret(), and vlc_keystore_release_entry().

◆ p_sys

vlc_keystore_sys* vlc_keystore::p_sys

◆ p_url

const vlc_url_t* vlc_credential::p_url

url to store or to search

Referenced by credential_find_keystore(), vlc_credential_get(), vlc_credential_init(), and vlc_credential_store().

◆ pf_find

unsigned int(* vlc_keystore::pf_find) (vlc_keystore *p_keystore, const char *const ppsz_values[KEY_MAX], vlc_keystore_entry **pp_entries)

See vlc_keystore_find()

Referenced by keystore_create(), and vlc_keystore_find().

◆ pf_remove

unsigned int(* vlc_keystore::pf_remove) (vlc_keystore *p_keystore, const char *const ppsz_values[KEY_MAX])

See vlc_keystore_remove()

Referenced by keystore_create(), and vlc_keystore_remove().

◆ pf_store

int(* vlc_keystore::pf_store) (vlc_keystore *p_keystore, const char *const ppsz_values[KEY_MAX], const uint8_t *p_secret, size_t i_secret_len, const char *psz_label)

See vlc_keystore_store()

Referenced by keystore_create(), and vlc_keystore_store().
